CLIP-Loc: Multi-modal Landmark Association for Global Localization in Object-based Maps

IEEE International Conference on Robotics and Automation (ICRA), 2024
Shigemichi Matsuzaki, Takuma Sugino, Kazuhito Tanaka, Zijun Sha, Shintaro Nakaoka, Shintaro Yoshizawa, and Kazuhiro Shintani
Frontier Research Center,
Toyota Motor Corporation
FRC Logo
feed Paper code Code

In conventional global localization in object-based maps, only class information is utilized for constructing a correspondence candidate set, leading to exponential growth of the number as the landmark increases. In this paper, we propose to assign a natural language description as a label to each landmark, and match them with visual observation using a Vision Language Model (VLM). It enables more efficient correspondence matching leveraging the fine-grained information given by the text labels.

Abstract

This paper describes a multi-modal data association method for global localization using object-based maps and camera images. In global localization, or relocalization, using object-based maps, existing methods typically resort to matching all possible combinations of detected objects and landmarks with the same object category, followed by inlier extraction using RANSAC or brute-force search. This approach becomes infeasible as the number of landmarks increases due to the exponential growth of correspondence candidates. In this paper, we propose labeling landmarks with natural language descriptions and extracting correspondences based on conceptual similarity with image observations using a Vision Language Model (VLM). By leveraging detailed text information, our approach efficiently extracts correspondences compared to methods using only object categories. Through experiments, we demonstrate that the proposed method enables more accurate global localization with fewer iterations compared to baseline methods, exhibiting its efficiency.

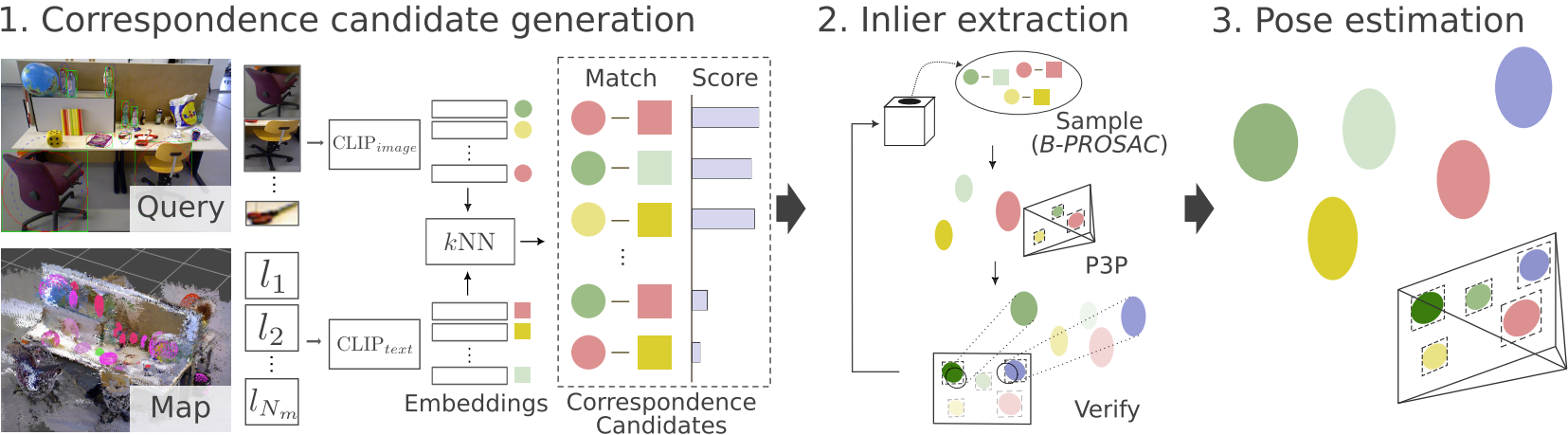

Method

1. Correspondence generation using CLIP

We propose to match visual object observation with text-labeled map landmarks using multi-modal similarity calculated by CLIP. This allows for correspondence matching based on fine-grained semantic information given as arbitrary language descriptions of the landmarks. The observations and landmarks are matched by k nearest neighbor in the feature space.

2. Inlier extraction based on PROSAC

Conventional RANSAC is based on completely random sampling which is not efficient as the correspondence candidates generated in the previous step inherently contain significant amounts of outliers. To mitigate the problem, we propose to use PROSAC, which samples the most promising correspondences first, leading to better efficiency. The similarity between a visual observation and the text assigned to a landmark is used as a score of the correspondence candidate.

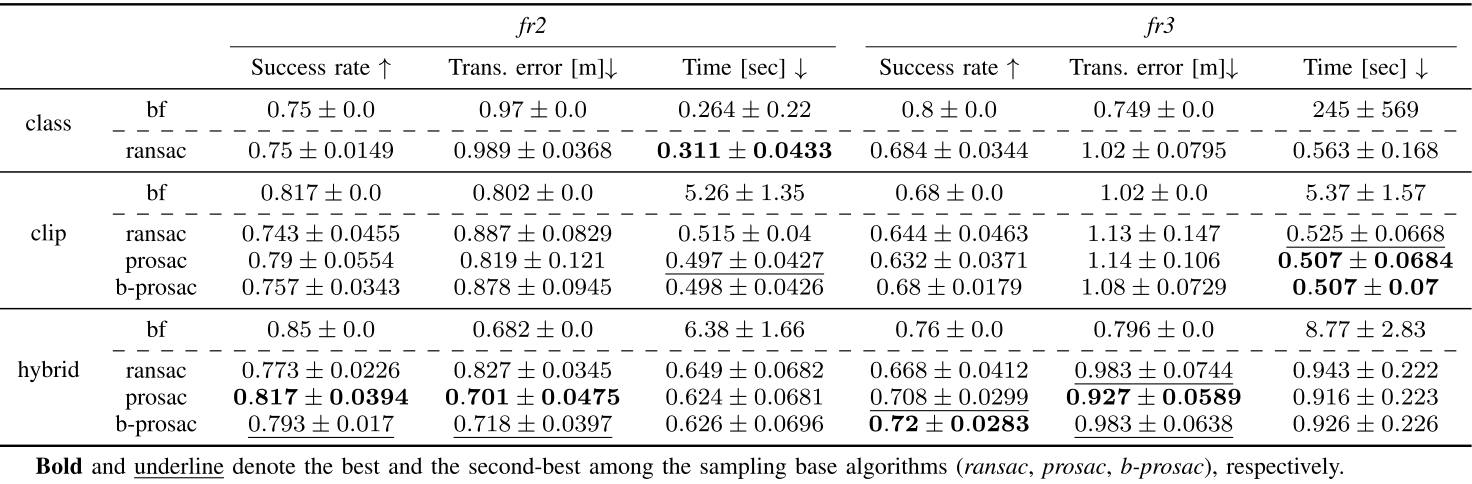

Results

More results such as ablations are in the paper.

Our Related Projects

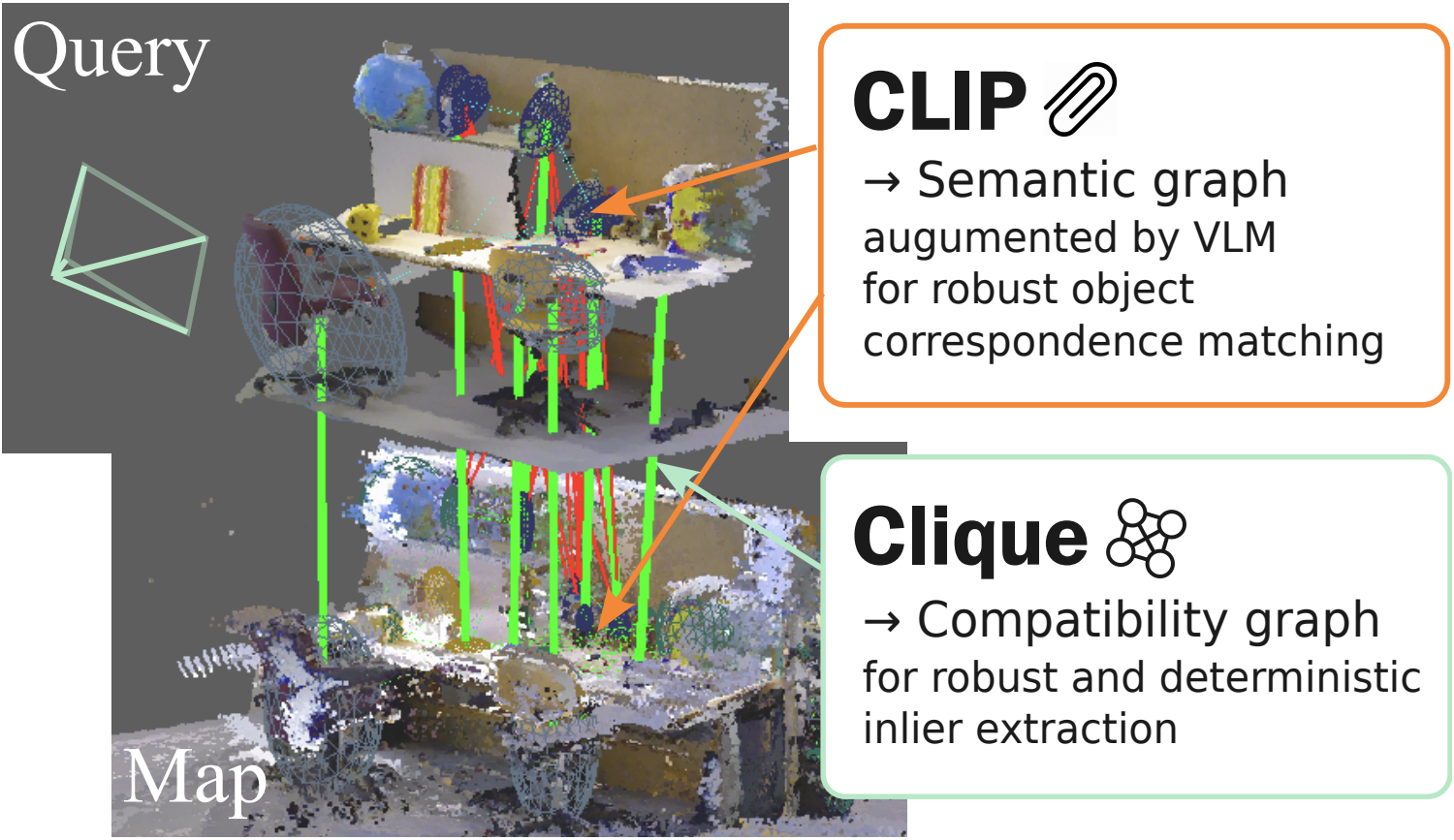

CLIP-Clique: Graph-based Correspondence Matching Augmented by Vision Language Models for Object-based Global Localization [code]
Extended work of CLIP-Loc. We proposed a hybrid object descriptor that combines the advantages of both VLM (CLIP), and general object detectors via semantic graphs. To robustify inlier extraction, we employed a graph-theoretic algorithm.

Citation

@inproceedings{Matsuzaki2024ICRA,
    author = {Matsuzaki, Shigemichi and Sugino, Takuma and Tanaka, Kazuhito and Sha, Zijun and Nakaoka, Shintaro and Yoshizawa, Shintaro and Shintani, Kazuhiro},
    booktitle = {IEEE International Conference on Robotics and Automation},
    doi = {10.1109/ICRA57147.2024.10611393},
    month = {may},
    pages = {13673--13679},
    publisher = {IEEE},
    title = {{CLIP-Loc: Multi-modal Landmark Association for Global Localization in Object-based Maps}},
    url = {http://arxiv.org/abs/2402.06092},
    year = {2024}
}
